10 must-know biology diagrams

Hand-drawn, exam-ready diagrams with clear labels and notes for CBSE and ICSE Classes 9-12. Tap any diagram to enlarge, or download the full set as a PDF.

Use these as quick revision prompts before class, tests, and board exam practice.

Download PDF

Diagram 01

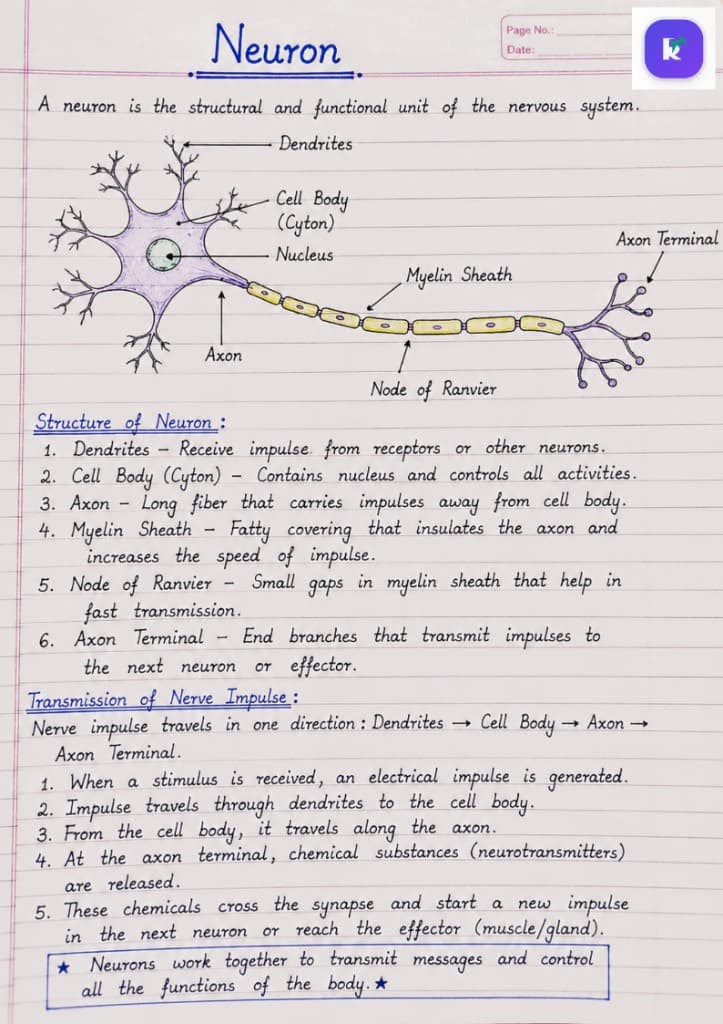

Neuron

  • Structure of neuron
  • Transmission of nerve impulse

Diagram 02

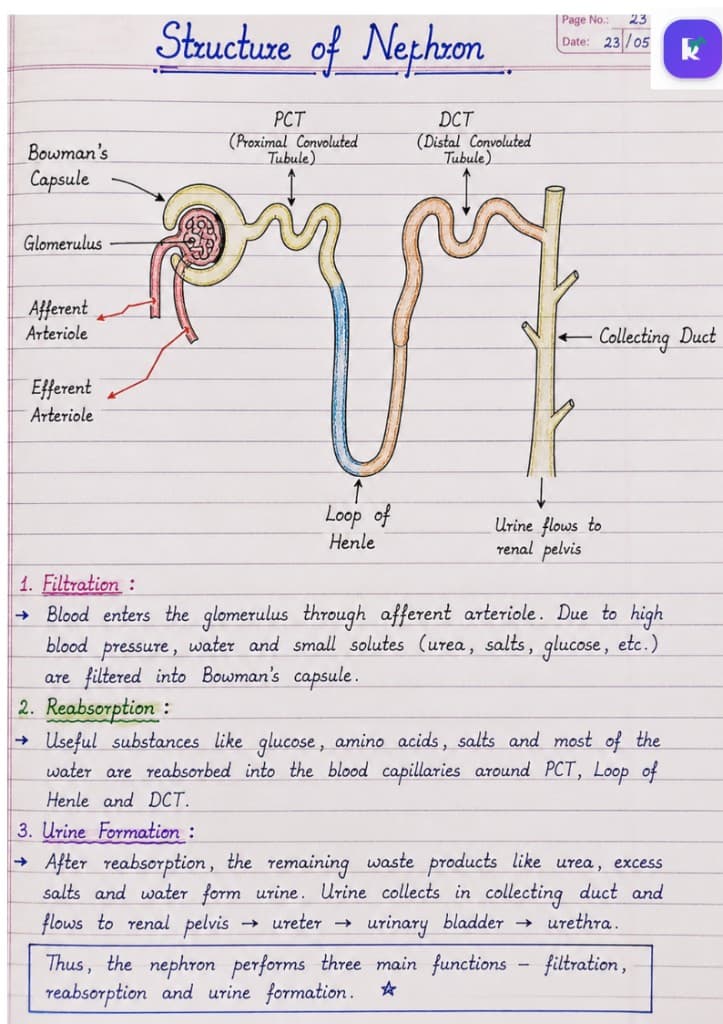

Structure of Nephron

  • Filtration
  • Reabsorption
  • Urine formation

Diagram 03

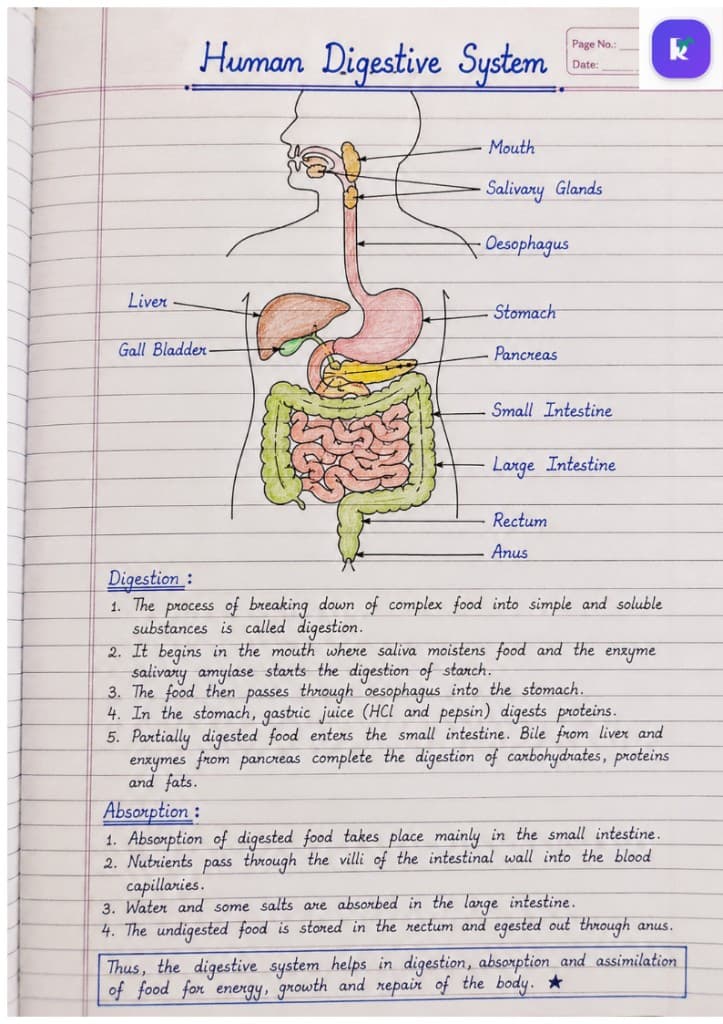

Human Digestive System

  • Digestion
  • Absorption

Diagram 04

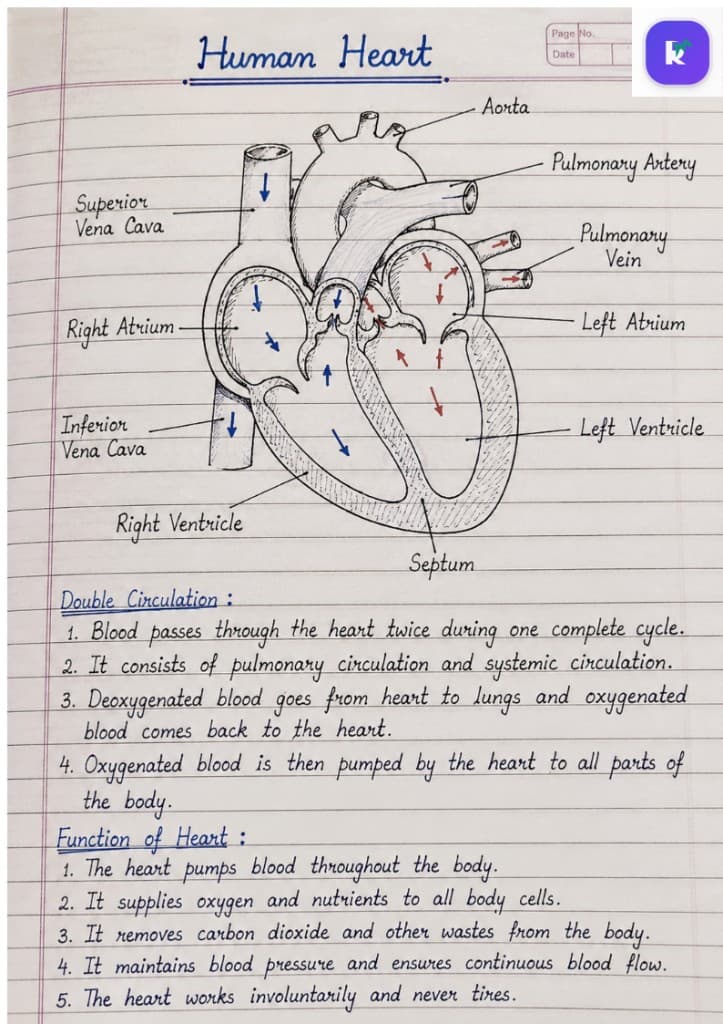

Human Heart

  • Double circulation
  • Function of heart

Diagram 05

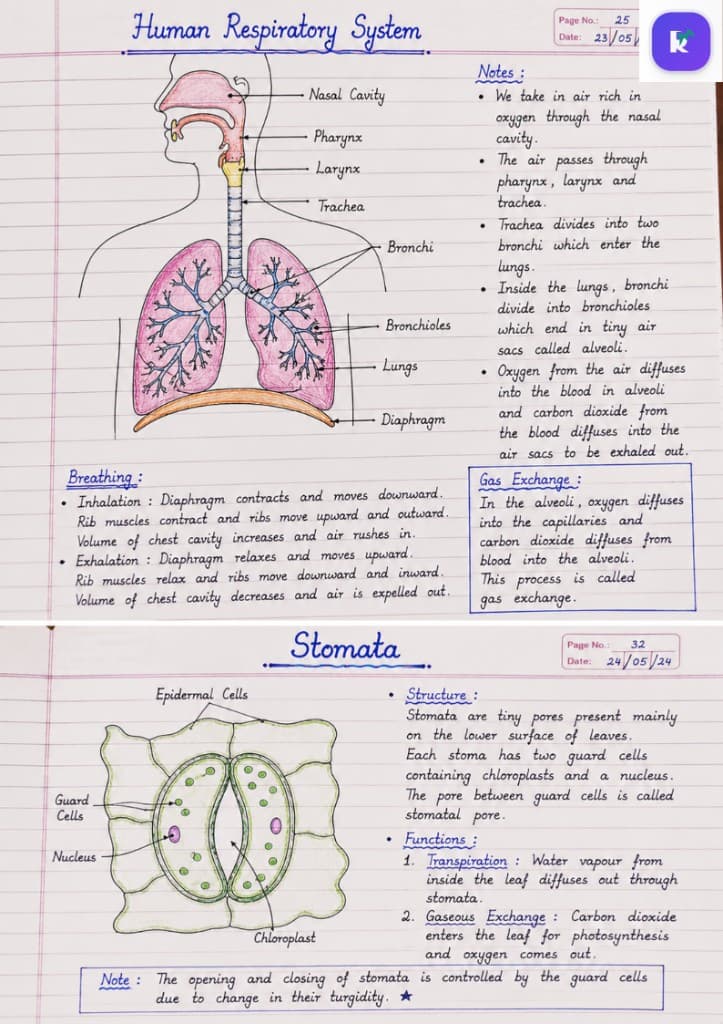

Respiratory System & Stomata

  • Human respiratory system
  • Breathing
  • Stomata structure & function
